INTRODUCTION

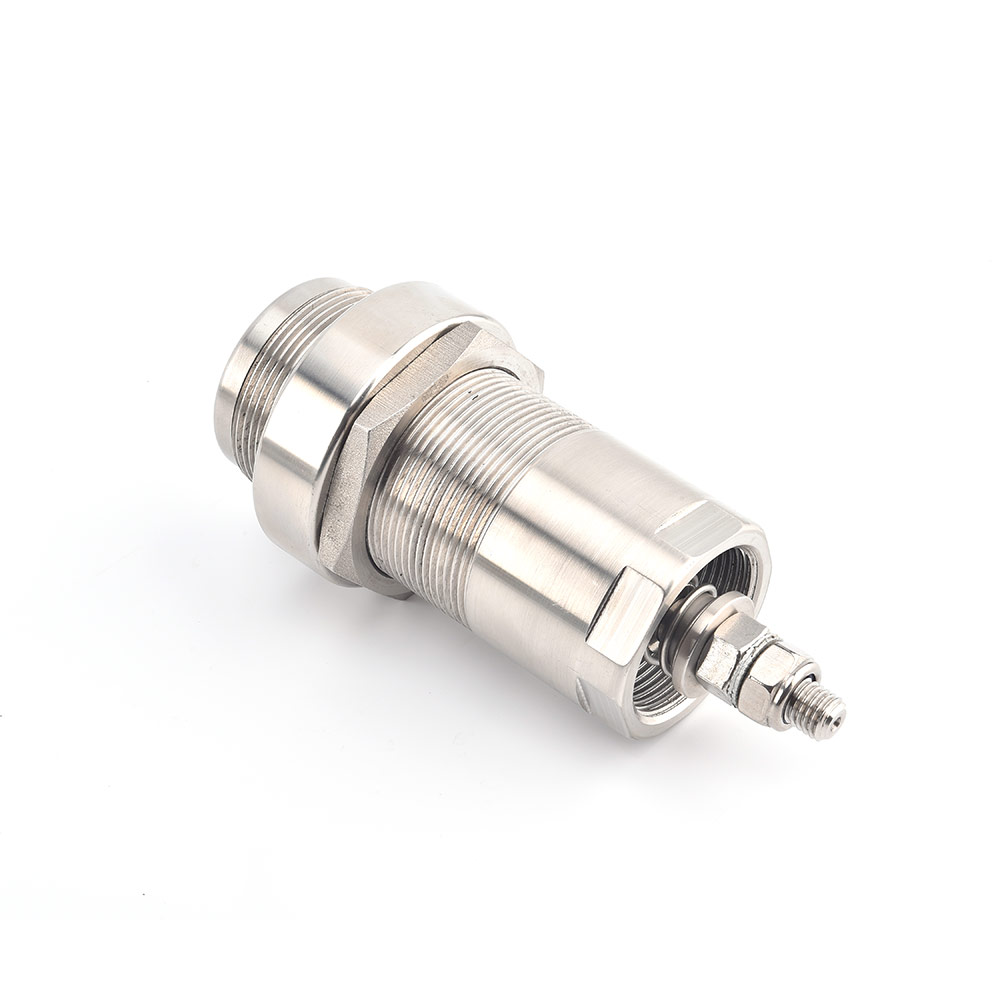

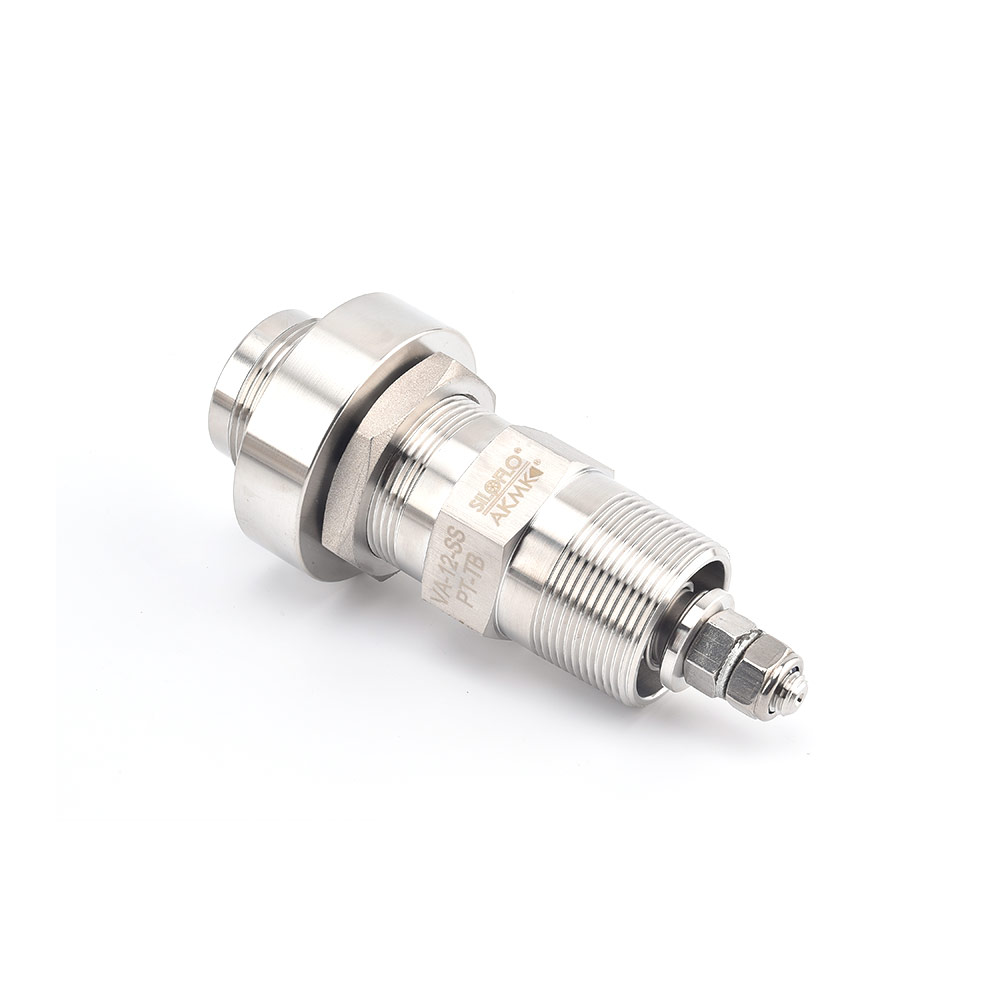

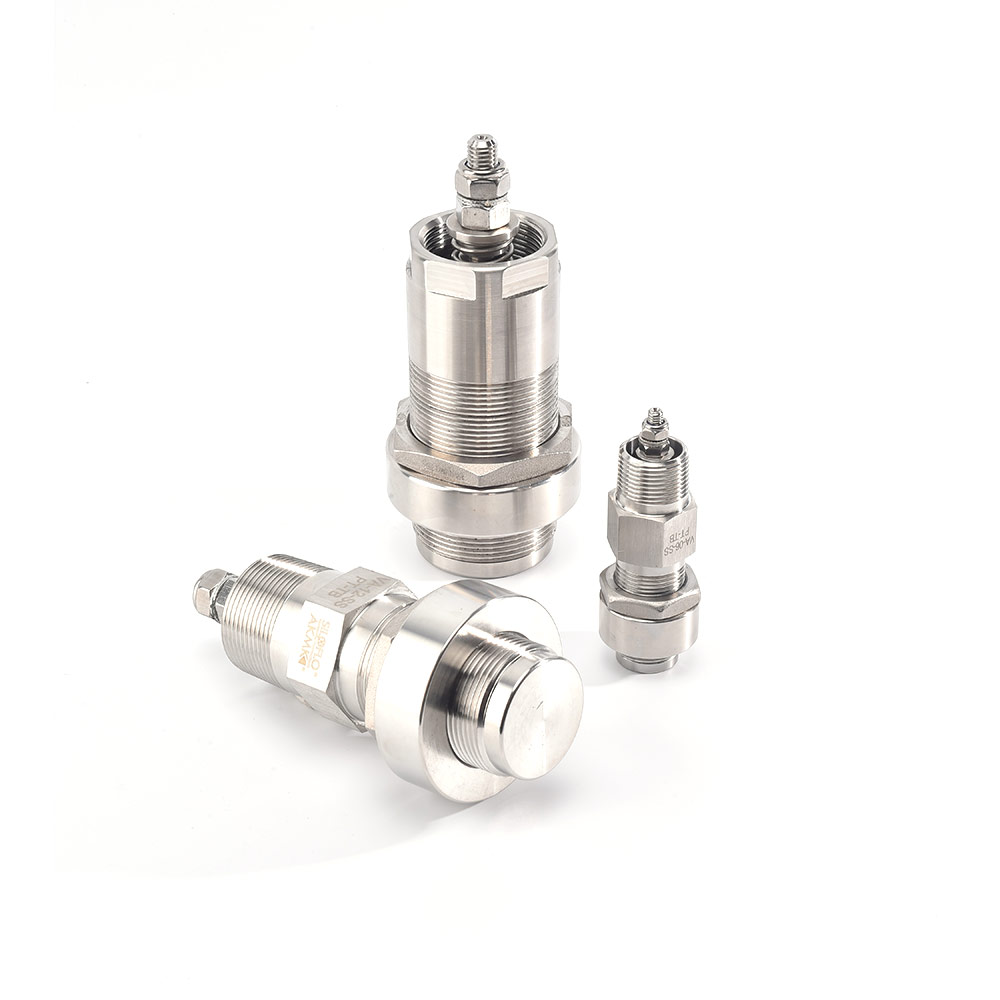

VA aeration nozzles represent the most efficient solution for ensuring the flow of material out of silos, bins or hoppers.
VA aeration nozzles can be easily installed or retrofitted in existing installations.
The main housing must be screwed onto the steel fitting provided which must first be welded to the outside of the silo, silo or weigh hopper. Subsequently, the connection to the compressed air supply must be made.
Their small footprint makes VA aeration nozzles especially suitable for retrofitting.
VA Aeration Nozzles are used with finely powdered materials such as wood or fiberglass silos, dumpsters, cement, lime and similar powders, working pressure is minimum PSI: 50 PSI, maximum PSI: 125 PSI, recommended working pressure 7.5 bar (110 PSI),
For food grade applications choose the stainless steel range.

Benefits
Eliminate and prevent ratholes, bridging, and sticky buildup
Easily mounted and maintained from vessel exterior.
Easily installs in metal, concrete, wood or fiberglass silos, bins, hoppers, chutes — any place where materials can hang up in a process.
Cost and energy efficient— typical system uses as little as 10 CFM of plant air.
Virtually maintenance-free performance.
