description

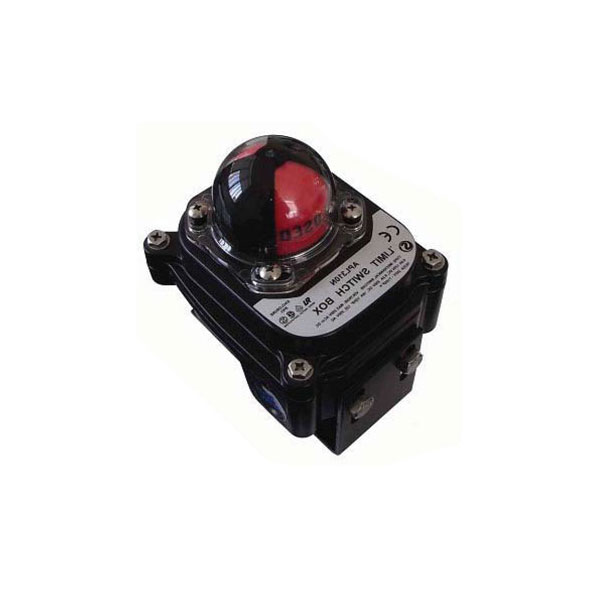

APL series limit switch box is a compact weatherproof enclosure with internal adjustable position switch and external visual indication. It has NAMUR standard installation and drive, which is very suitable for installation on quarter-turn actuators and valves.

Features:

Robust and compact aluminum die-cast housing with polyester powder coating

Bolt fixed visual position indicator

Spring loaded spline cam. No need to adjust again after the initial setting. Easy to set up without tools

Double cable entry

Tether the cover bolts to prevent loss when the cover is removed

NAMUR standard stainless steel shaft and bracket

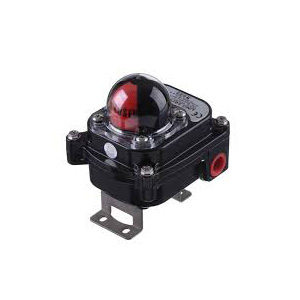

Limit switch box for pneumatic actuator

Powder coated aluminum body. IP67 protection. Two M20 cable entries. High visibility dome indicator. Two SPDT voltage-free switches. Maximum current 10 AMP AC, 2 AMP DC

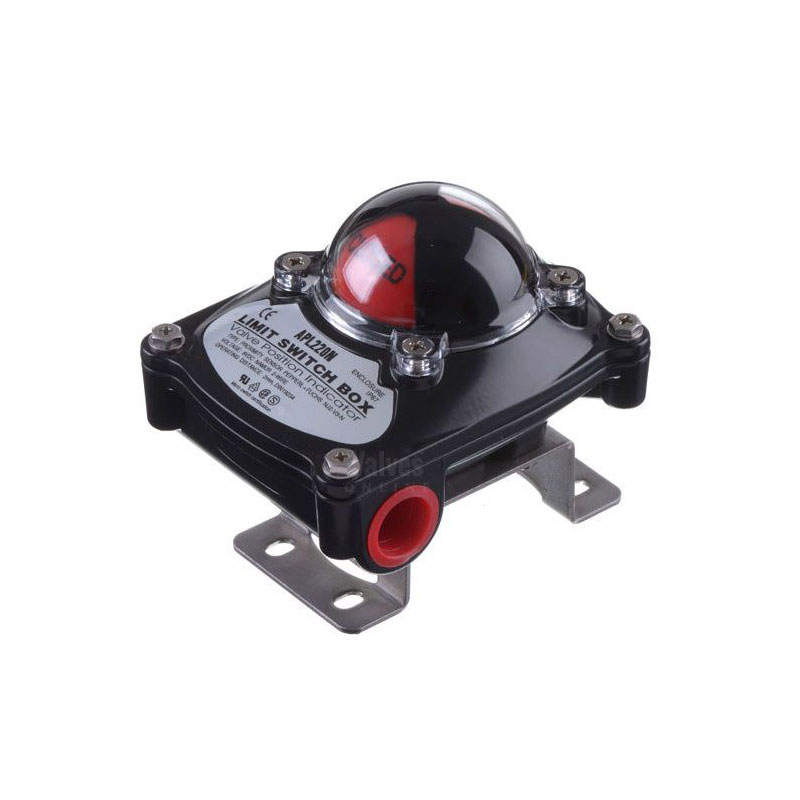

The APL210 series limit switch box is a multifunctional device that can provide visual indication of valve position and electrical feedback of two micro switches. The terminal block and dual conduit entry points allow solenoid valves and micro switches to be wired via a single multi-core cable.

IP67 housing

Beacon indicator

Stainless steel shaft and mounting bracket

2 SPDT V3 micro switches

2 M20 cable entries

Simple spring-loaded switch adjustment

Options

Proximity sensor, IP68, three position indicator, NPT cable entry and alternative colors.
