Description

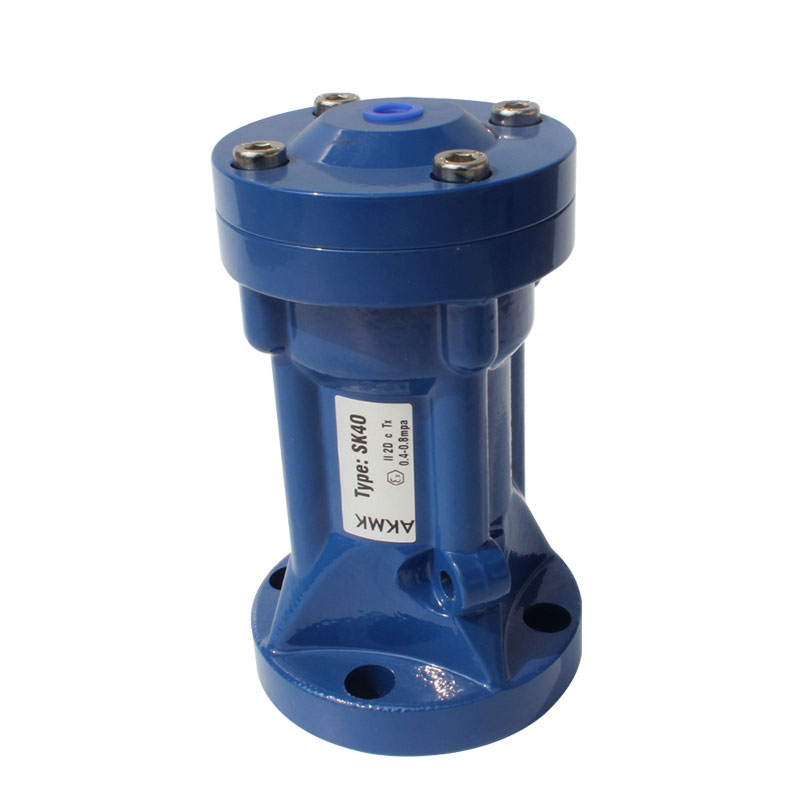

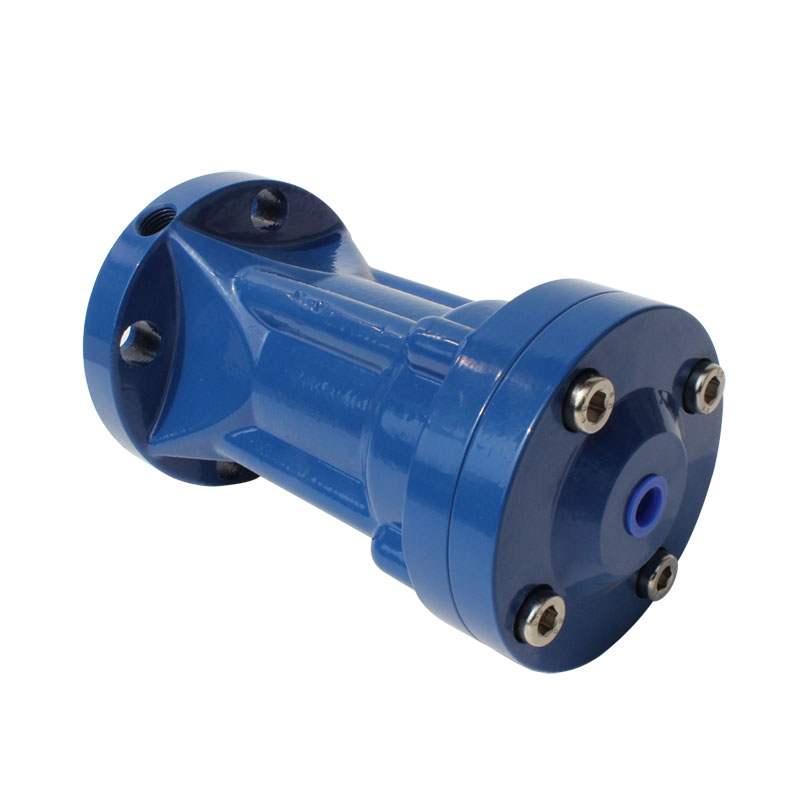

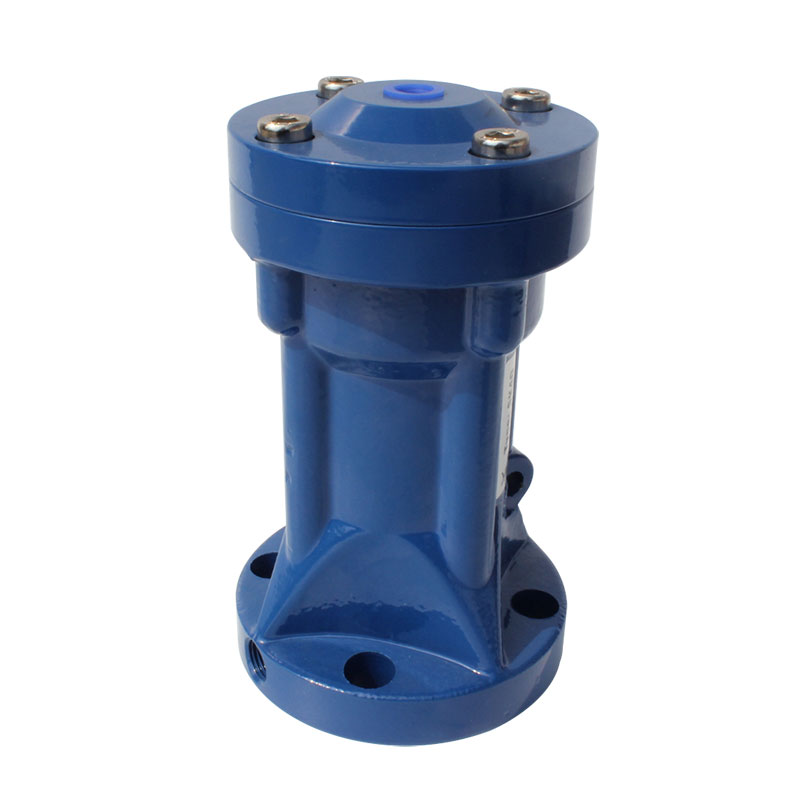

Piston vibrators use the impact of a rapidly moving piston to produce a linear shock wave of energy. This shock wave is transmitted through the bin or hopper wall forcing the stuck material away from the wall, thus restoring material flow.

Applications

hammers are designed to prevent bridges and rat holes in silos and hoppers.

Their installation does not require any drilling but only a welding, for this reason they are also suitable for installation on existing systems.

Features

characterized by intermittent cycle operation, with an operating pressure from 3 to 6 bar (44 ~ 87 PSI).

mounted on a fixing plate to be welded on the wall of the silo or hopper.

available in 5 different sizes suitable for different thickness silos.

Benefits

Advantages

Compact design with integrated valve

Excellent performance

Easy installation

Suitable for operation in potentially explosive atmospheres
