Description

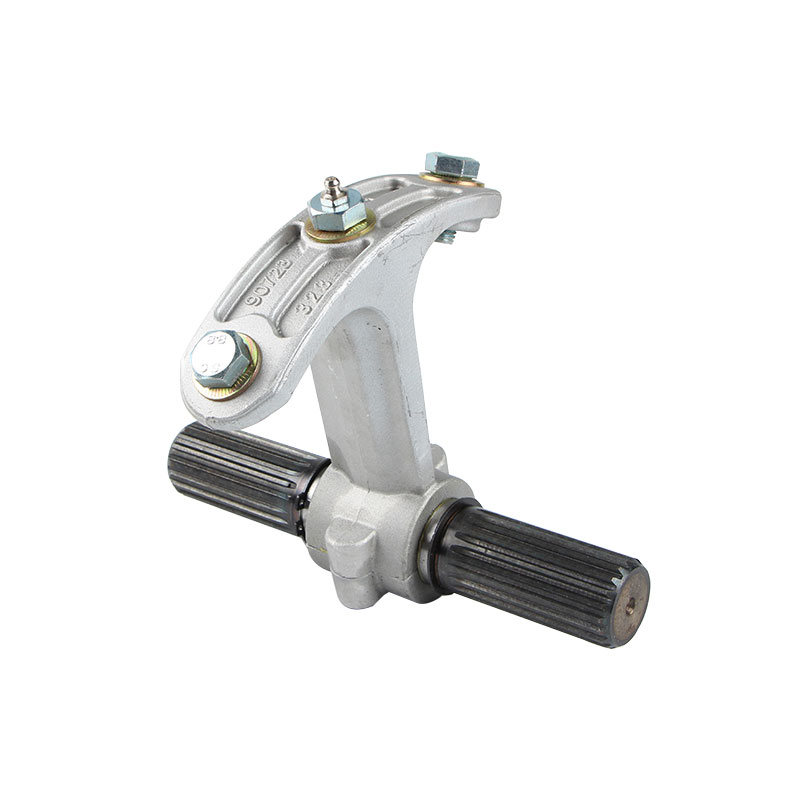

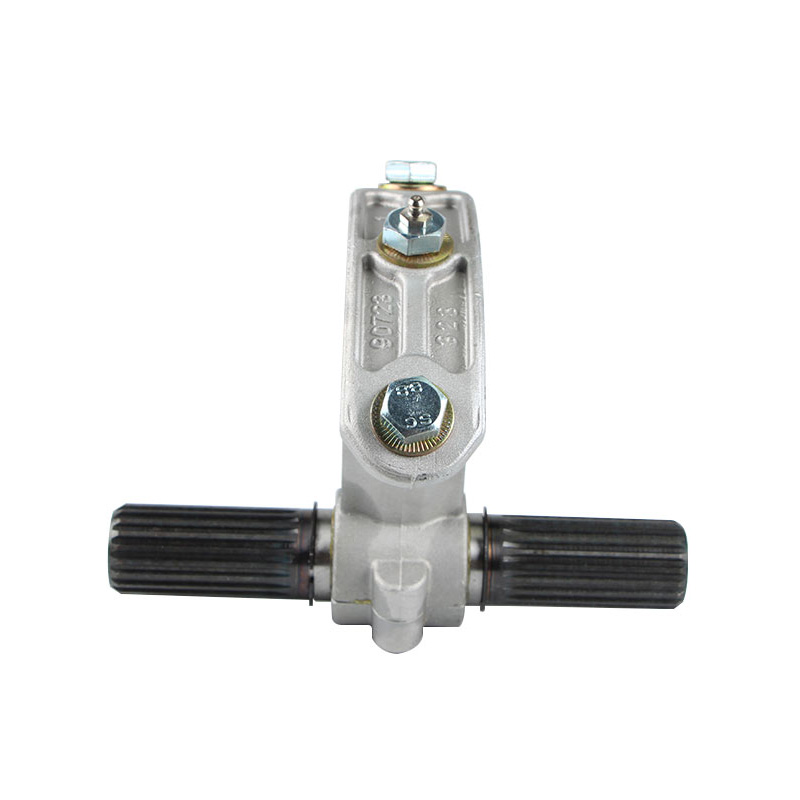

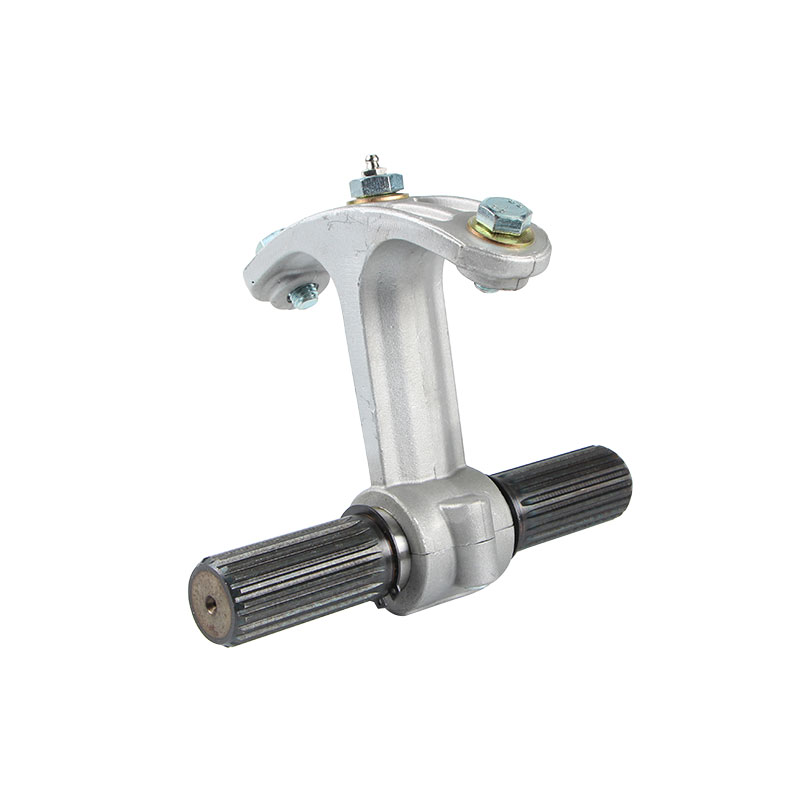

The intermediate hanger bearing is a mechanical part that connects the Helicoid flighting and another Helicoid flighting to transmit power.

Features

Installation position: between the inner tubes of the screw machine;

Function: play the role of supporting and connecting two inner tubes

Housing material: aluminum

Drive shaft material: steel

Features: 20-tooth spline, tooth diameter 40MM, can be customized.

Material processing: high frequency quenching, quenching and tempering treatment,

Mass production, price and low

Model: 90719 90720 90721 90722 90723 XLR028B010T44 XLR028B012T44 XLR040B015T44  XLR040B017T44  XLR040B020T44  XLR040B025T44 XLR040B030T44
