INTRODUCTION

The FNC Dust Collector range is the result  decades of experience in dust filtration technology. Since it went into production, tens of thousands of units have left the Group’s manufacturing plants all over the world. In diverse configurations FNC has proved to be suitable for a variety of applications in virtually all industries.Share this topic

TECHNICAL SPECS

Description

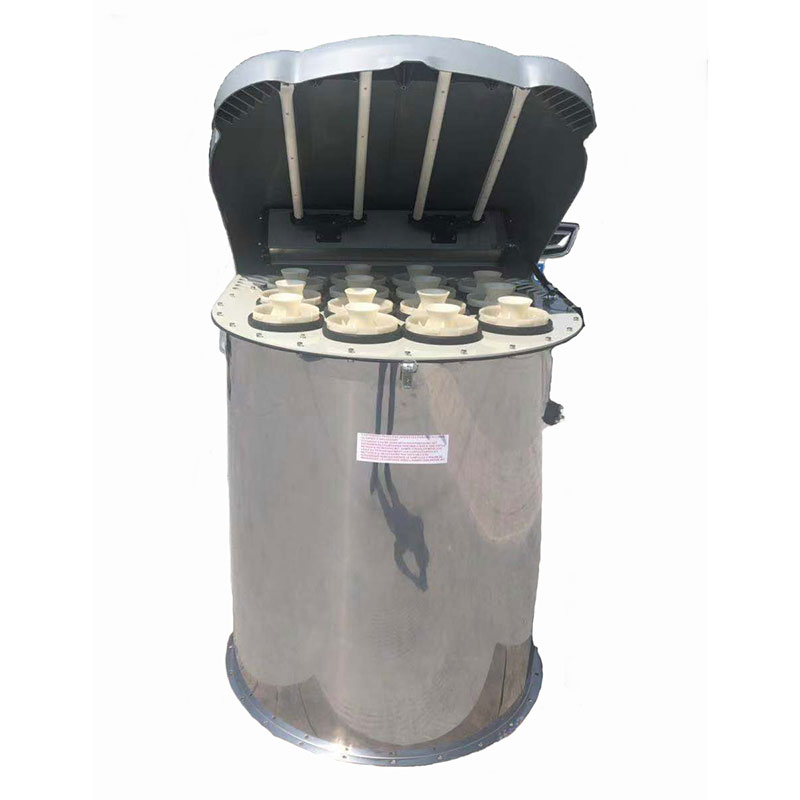

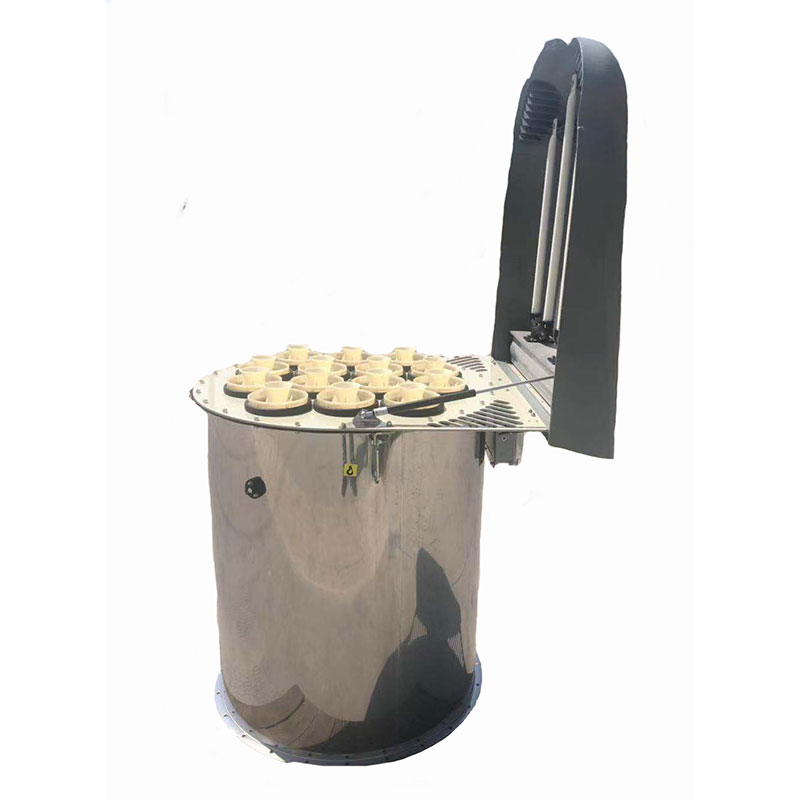

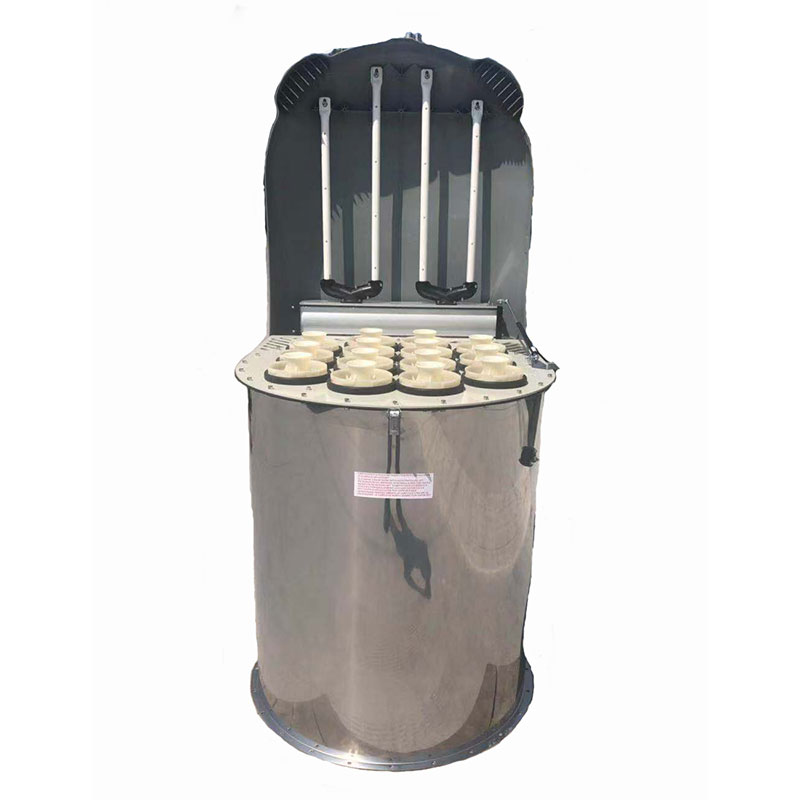

FNC Dust Collectors are equipped with a cylindrical stainless-steel casing and flanged bottom ring, which contains vertically mounted bag-type, cartridge-type or high-efficiency  filter elements.

A compressed air pulse-jet filter element cleaning system is integrated into the hinged top cover or connecting top flange.

FNC Dust Collectors are available with or without suction fan. As an option for applications with top-mounted suction fan or in case of limited headroom, FNC can be equipped with a large front door which facilitates access to the filter elements form the dirty air side in case of inspection or maintenance.

FNC is supplied with an integrated modular electronic control panel that manages cleaning cycles according to the specific requirements of the work process.

The collector can be installed on top of a silo or on any other equipment that requires dedusting (belt conveyor, bucket elevator, chain conveyor, etc.), or as a “stand-alone” unit fixed on a standard DK-type  dust collecting hopper.

Flanged Round Dust Collectors

Function

FNC separates dust particles carried in suspension by an air flow using filter elements. The dusty air current passes through the filter media, which holds back the dust particles allowing the air to flow through.

FNC Dust Collectors can be configured for venting, suction and vacuum applications.

Features

Filter surface: 1 ~ 48 m² (11 ~ 517 sq ft)

Air volume: 60 ~ 6,000 m³/h (35 ~ 3,530 cfm)

Filter elements: round bags, elliptical bags, cartridges, POLYPLEAT

Compressed air pulse-jet cleaning system (4 ~ 6 bar)

Dust temperature: -20 ~ 80 °C (-4 ~ 176 °F)

Cylindrical stainless-steel casing with bottom flange

Quick and safe filter element replacement from clean or dirty air side

Multifunctional multi-voltage electronic control panel

Tool-free filter element replacement

Designed for outdoor installation

Benefits

Low emission level due to filter elements and media

Easily configurable for a wide range of dusts

Reliable, versatile and durable for a variety of applications

High cleaning efficiency due to "Full Immersion" solenoid valves incorporated into aluminium air tank

Low air consumption with FILCONTROL CONNECT

Easy and quick installation and maintenance

Multiple voltages meeting different electric specifications

Worldwide after-sales service and spare parts provided by  subsidiaries

Options

Fan or connecting flange for centralised dust suction

Insertable and/or vacuum versions available

Increased casing thickness

304 / 316 stainless-steel casing and seal frame

Inspection hatch or maintenance door

Flanged or clamped connection

Advanced electronic control panel with a variety of controls and differential pressure meter (MDPE)

Winter protection for solenoid valves

Accessories

Dust collecting HOPPER with flow aid, butterfly valve and bucket

Flanged or clamped BOTTOM RING

Choke VALVE and SILENCER

Dust emission SAMPLING KIT

ELBOW for lateral connection
