Silo Top Bin Vent Filter. A bin vent filter is a dust filtration unit on top of a silo or a large bin. These storage units for powder and bulk materials can be filled mechanically by bucket elevators, for example, or by the pneumatic systems from bulk tanker truck.

TECHNICAL SPECS

Description

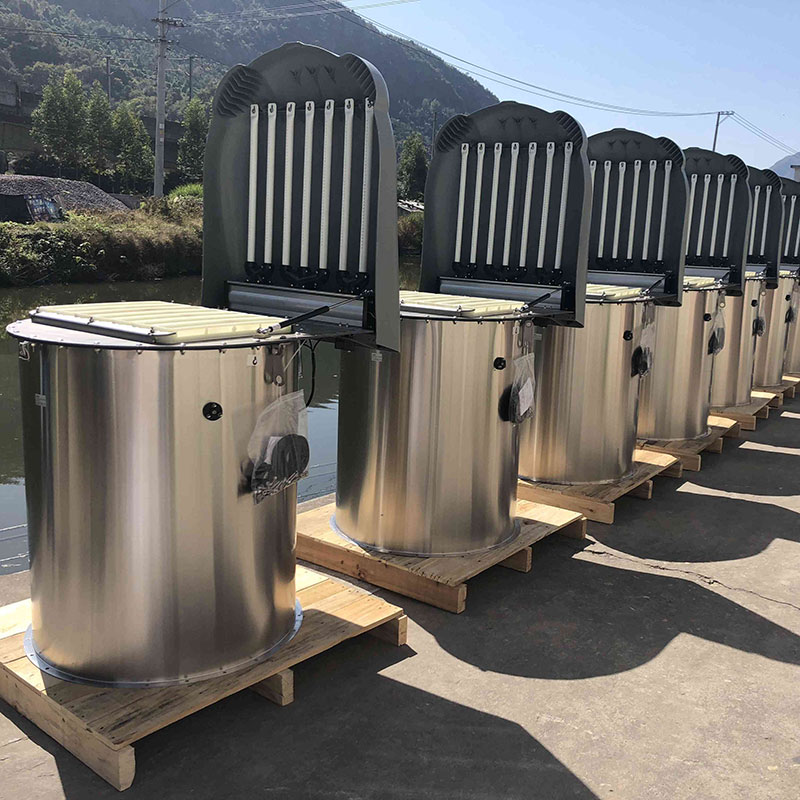

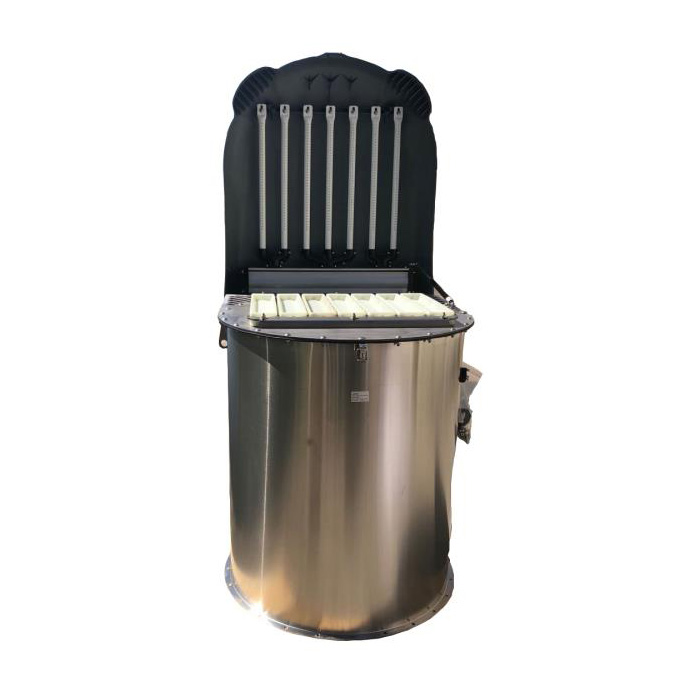

SILOR03 is a cylindrically shaped dust collector for venting of pneumatically filled silos. Its stainless steel body contains vertically mounted,  filter elements. The air jet cleaning system is integrated in the hinged weather protection cover.

Function

Dust separated from the air flow by special  filter elements drops back into the silo after an integrated automatic reverse air jet cleaning system inside the weather protection cover has removed it from the filter elements.

Performance and Technical Features:

• Compact 800mm (30 in) diameter 304 stainless steel body with bottom flange

• 24.5m2 (264 sq ft) filter surface

• Maintenance height = 1,145mm (3.75 ft)

• High filtration efficiency due to  filtering elements

• Low dust emission level due to B.I.A.-certified filter media

• Maintenance-free air jet cleaning unit integrated inside weather protection cover

• High cleaning efficiency due to "Full-Immersion" solenoid valves incorporated in corrosion-resistant aluminium air tank for minimum maintenance operation

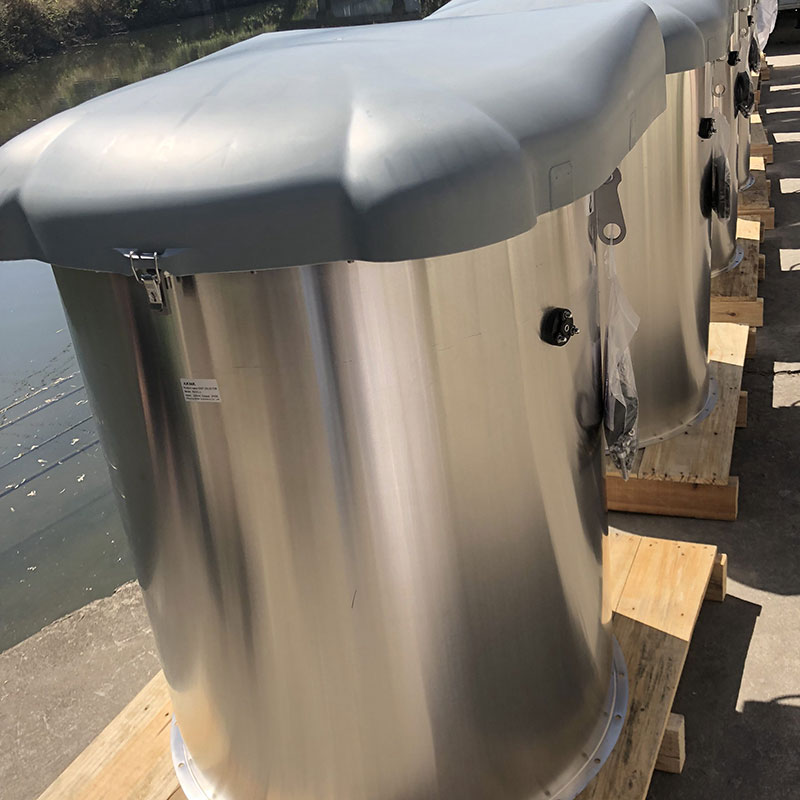

• Safe 304 stainless steel weather protection cover with lockable snap hook

• No tools required for filtering element removal

• Weatherproof finish

• Robust design

• Perfectly accessible due to compact design

• Complete replacement of filter media by only one person within a few minutes

• Standard fitting of condensation release valve on air reservoir

•Reduced flow resistance and prevention of rust due to special 304 stainless steel air distributors

MODEL:R03EL ,SILAB14,SILAB24,SILOTOP R03

Specifications

Body Size     30 inches

Filter Surface    264 sqft

Max. Height When Closed    43"

Max. Height When Open    73"

Weight lbs.    175
