description

Specially designed for reverse jet dust collector. Adopting spring structure, only one movable part, the combination of high flow life and quick opening provides an excellent design for the dust collection system. High-speed operation not only saves compressed air, but also provides shock waves needed to release dust from the filter bag.

operating:

The pulse valve is operated by an internal solenoid valve operator or a remote pilot solenoid valve. When the pilot solenoid valve is energized, the air trapped above the diaphragm is quickly discharged through the pilot solenoid valve, causing the main valve to open very quickly. When the lead solenoid valve is de-energized, the air supplied through the discharge hole is trapped above the diaphragm, causing the valve to close.

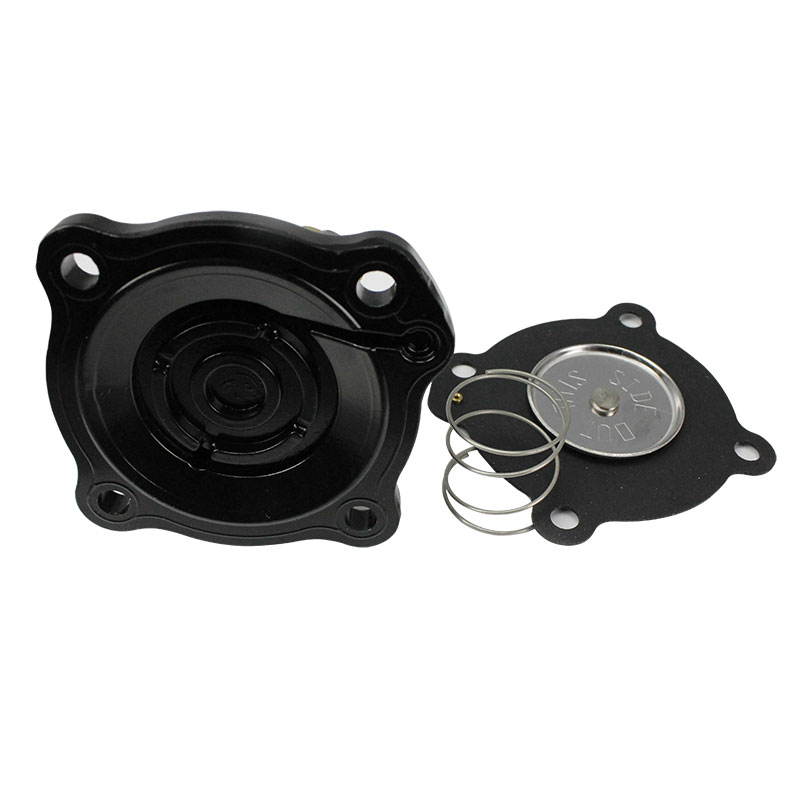

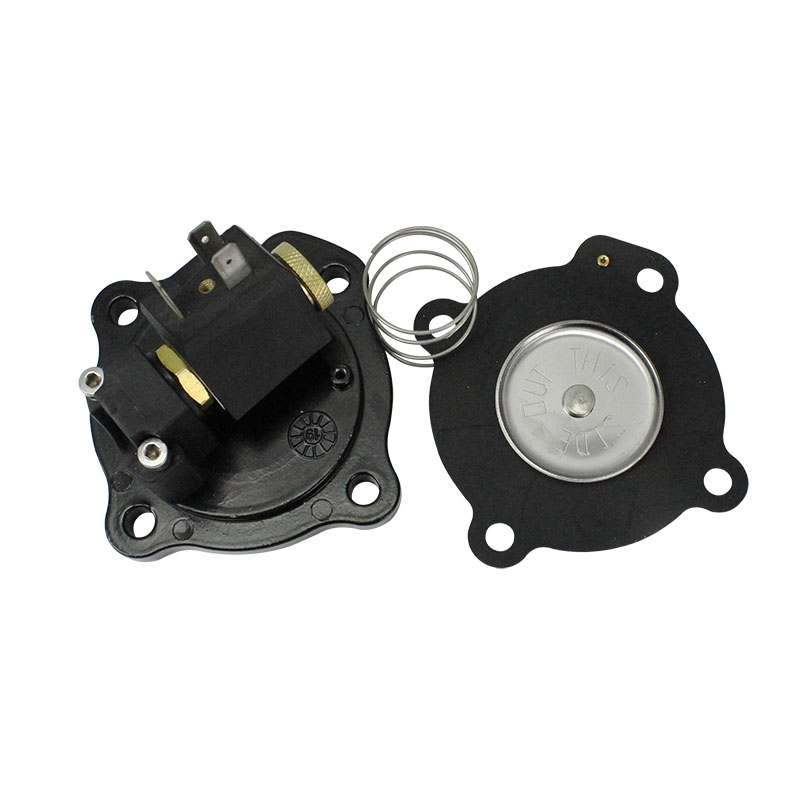

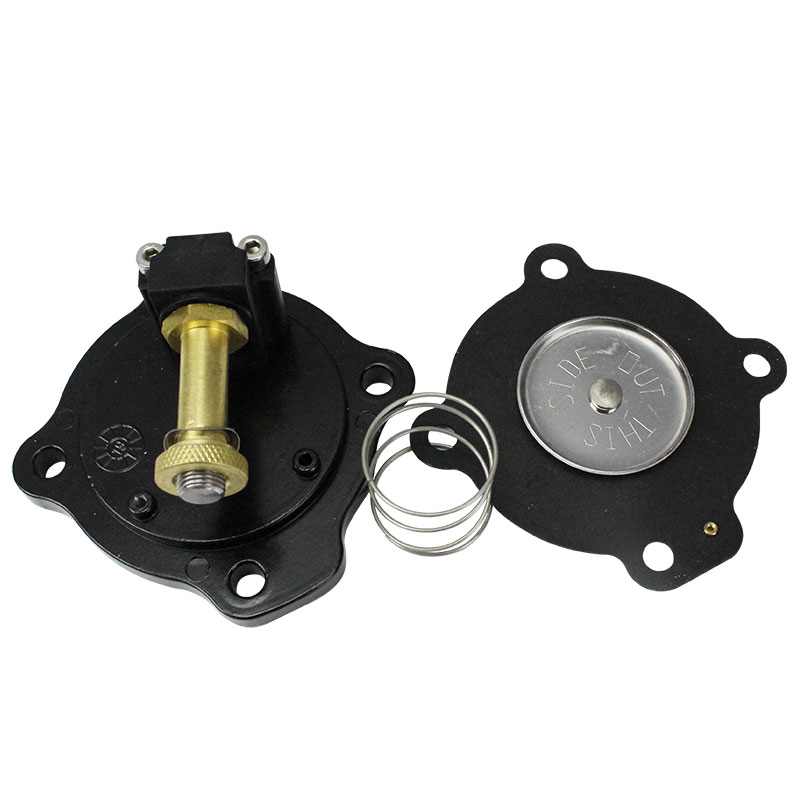

construction:

The valve body and cover plate are made of aluminum alloy castings. The diaphragm and sealing parts are made of nitrile rubber. Working pressure is 1 to 10kglcm2.

KEVN02450A dust removal solenoid valve is suitable for R03 and FLO dust collectors,

Features:

1. Protection grade IP66, IP67.

2. Explosion-proof and explosion-proof approved according to IS 2148 I, IIA, liB

3. All solenoid valve parts in contact with fluid medium are made of 300 and 400 series stainless steel.

4. Continuous working moulded coil for:. 'F' and'H' are insulated.

5. The fluid temperature is as high as 80°C.

6. Coil voltage: 24,48,110,240,440 volts 50 CIS AC

12,24,48,110,220 DC.
