Function

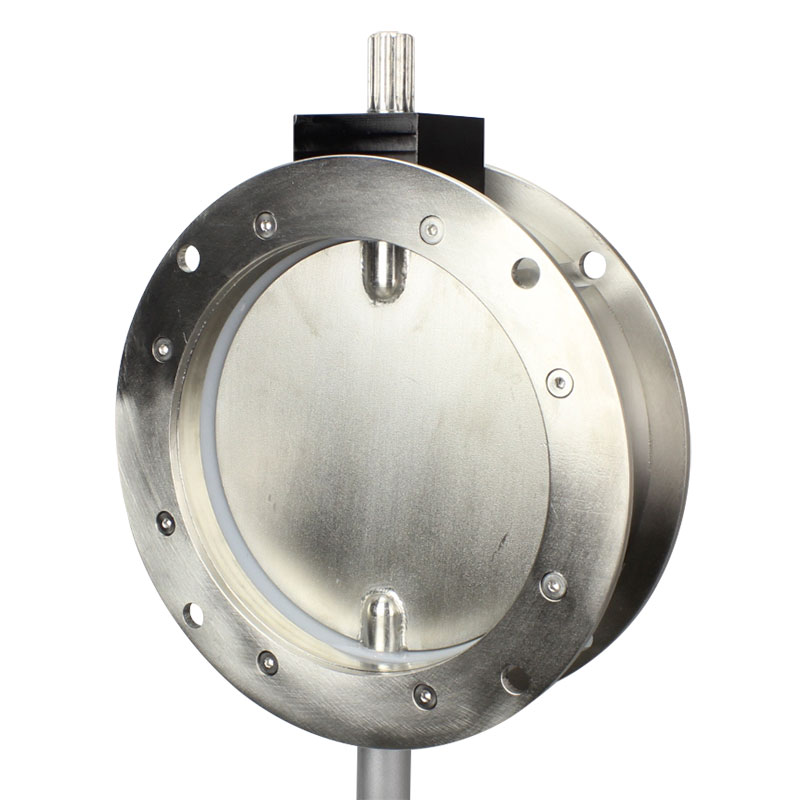

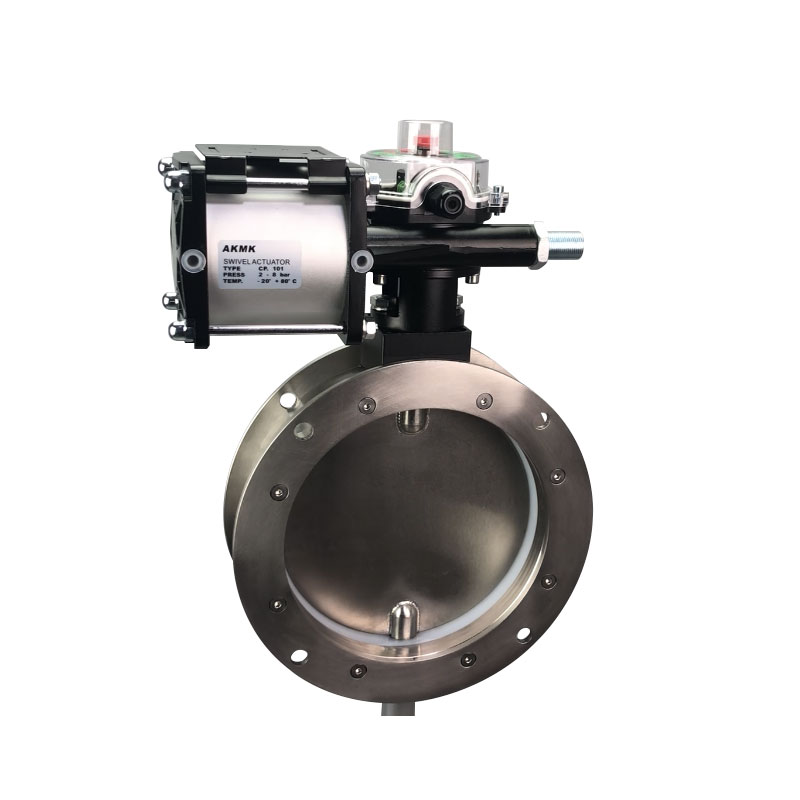

To close silos, hoppers or bins containing powders or granules, VFC Butterfly Valves range among the most widely used equipment worldwide.

What used to be custom-built items for specific applications, VFC has turned into a mass-produced, industrial product with features that allow extremely versatile use.

VFC Butterfly Valves are used in all types of powder and granular material processing plants where interception of gravity-fed or pneumatically conveyed dry materials is required. They are fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design and engineering materials used, they represent a particularly cost-effective yet most efficient solution.

Features

V1FC with top flange and beaded bottom section suitable for fixing a flexible sleeve

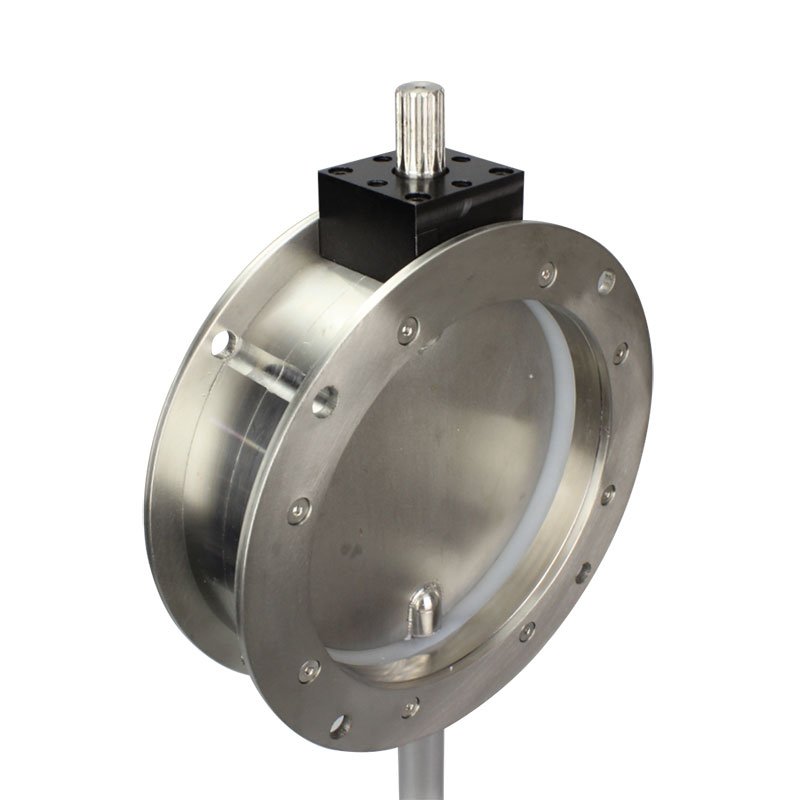

V2FC with identical top and bottom flange

Valve sizes range from 4" to 16" and the DN100-DN400 is available.

Dust tight and pressure-proof up to 0.2 bar (2.9 PSI)

Disc in stainless steel

Seals for standard or food-grade applications

Made up of few components

Used for powders, granules

Lightweight and easy to handle

Benefits

Highly abrasion-resistant

Easy to fit

Time-saving maintenance

Low operating and maintenance costs

Interchangeable discs

Ex-stock delivery

Options

ATEX -certified

Compliant with EN 1935/2004 standards

Food-grade version with stainless steel disc and integral seal

MODEL:V2FC100AS ,V2FC150AS, V2FS200AS ,V2FC250AS, V2FC300AS,V2FC350AS,V2FC400AS,

V1FC100AS ,V1FC150AS, V1FS200AS ,V1FC250AS, V1FC300AS,V1FC350AS,V1FC400AS​
