A butterfly valve is a valve which can be used for isolating or regulating flow. The closing mechanism takes the form of a disk. Operation is similar to that of a ball valve, which allows for quick shut off. Butterfly valves are generally favored because they are lower in cost to other valve designs as well as being lighter in weight, meaning less support is required. The disc is positioned in the center of the pipe, passing through the disc is a rod connected to an actuator on the outside of the valve. Rotating the actuator turns the disc either parallel or perpendicular to the flow. Unlike a ball valve, the disc is always present within the flow, therefore a pressure drop is always induced in the flow, regardless of valve position.

TECHNICAL SPECS

Description

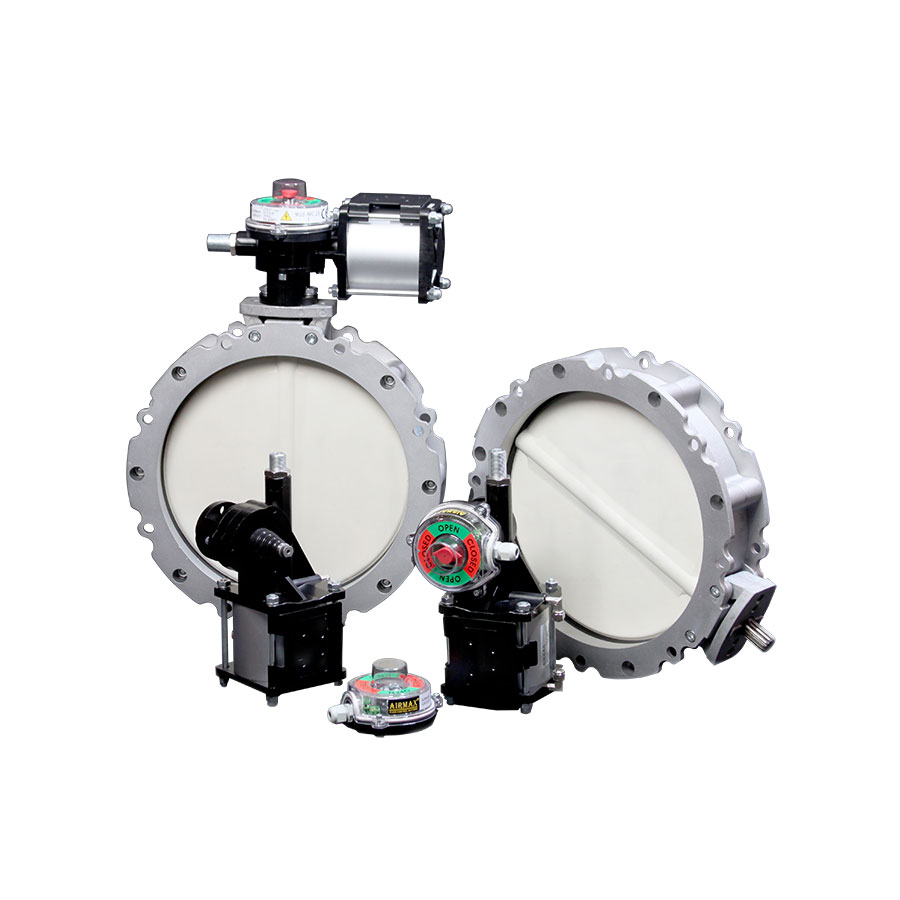

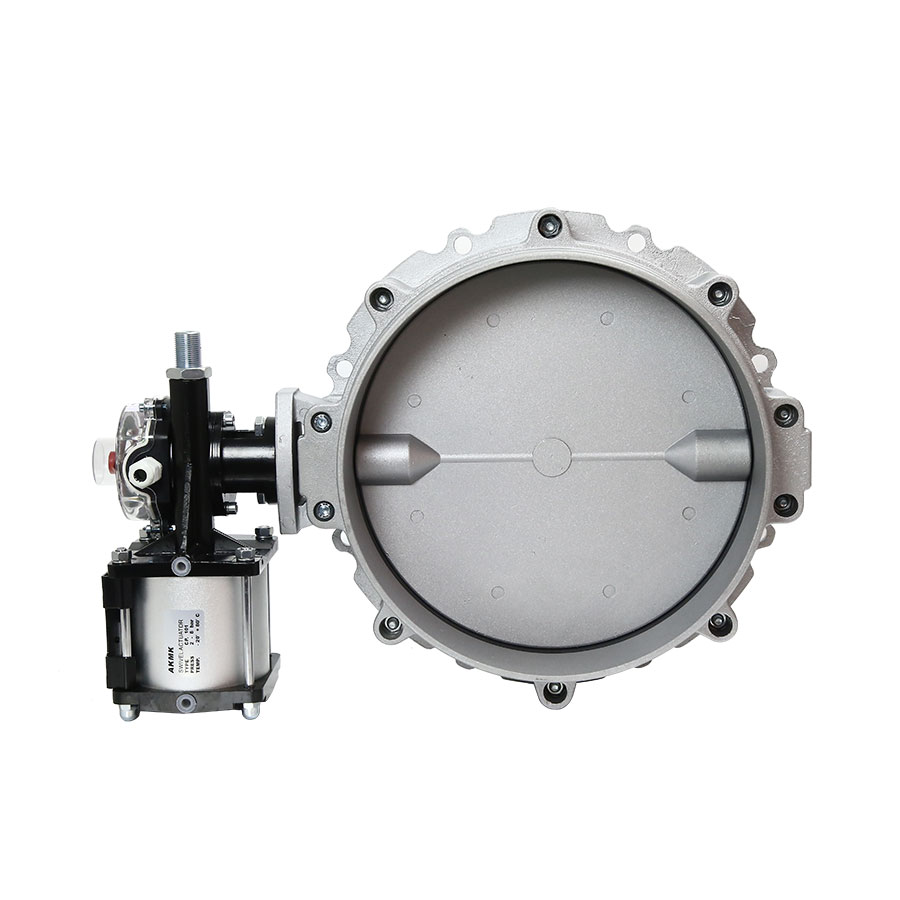

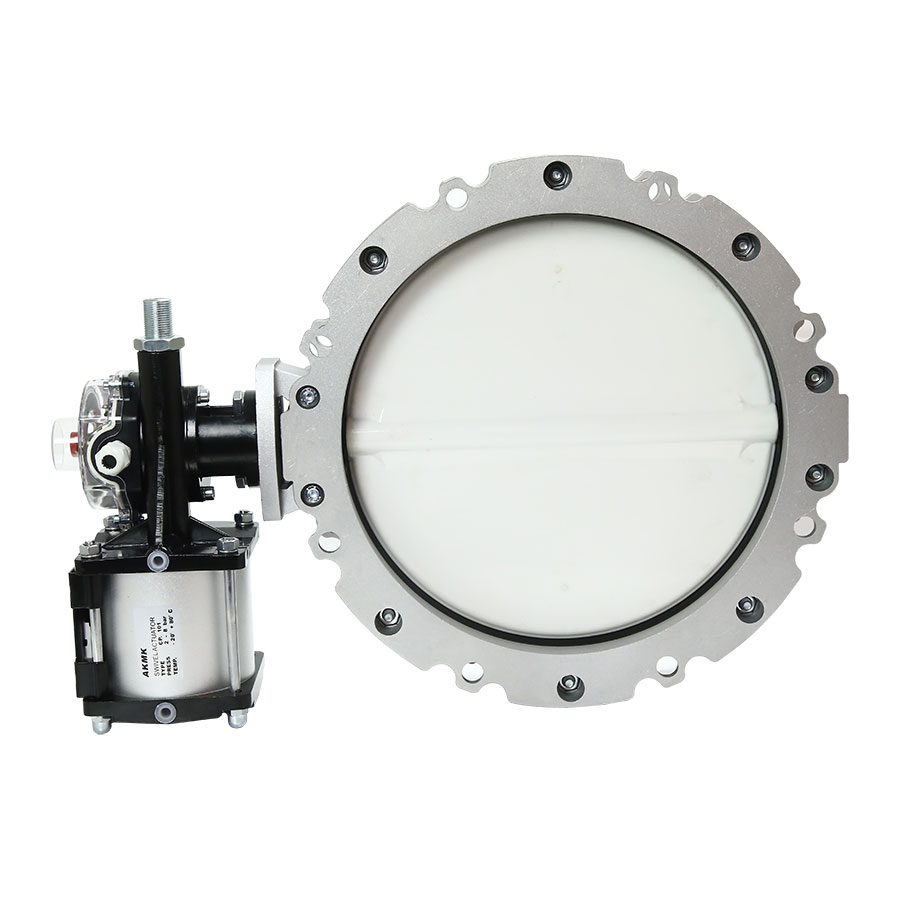

VFS Butterfly Valves consist of two high-pressure aluminium alloy die-cast semi-bodies, a SINT polymer composite or cast iron swivel disc, and a pre-stressed elastomer seal.

For the food industry a version with stainless steel disc and an FDA/EN-approved, integral seal is available.

While V1FS has a top flange and beaded bottom section – suitable for the attachment of a flexible sleeve – V2FS comes with identical top and bottom flange.

Function

To close silos, hoppers or bins containing powders or granules, VFS Butterfly Valves range among the most widely used equipment worldwide.

What used to be custom-built items for specific applications, VFS has turned into a mass-produced, industrial product with features that allow extremely versatile use.

VFS Butterfly Valves are used in all types of powder and granular material processing plants where interception of gravity-fed or pneumatically conveyed dry materials is required. They are fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design and engineering materials used, they represent a particularly cost-effective yet most efficient solution.

Features

V1FS with top flange and beaded bottom section suitable for fixing a flexible sleeve

V2FS with identical top and bottom flange

Valve sizes range from 4" to 16" and the DN100-DN400 is available.

Dust tight and pressure-proof up to 0.2 bar (2.9 PSI)

High-pressure, aluminium alloy die-cast semi-bodies

Disc in cast iron, engineering polymer, or stainless steel

Seals for standard or food-grade applications

Made up of few components

Used for powders, granules

Lightweight and easy to handle

Benefits

Highly abrasion-resistant

Easy to fit

Time-saving maintenance

Low operating and maintenance costs

Interchangeable discs

Ex-stock delivery

Options

ATEX -certified

Compliant with EN 1935/2004 standards

Food-grade version with stainless steel disc and integral seal

Series VFS Butterfly Valves   (14 matching Items)

V1FS100 , V1FS150 , V1FS200 , V1FS250 , V1FS300 , V1FS350 , V1FS400 , V2FS100 , V2FS150 , V2FS200 ,V2FS250 ,V2FS300 ,V2FS350, V2FS400  all matching items​
